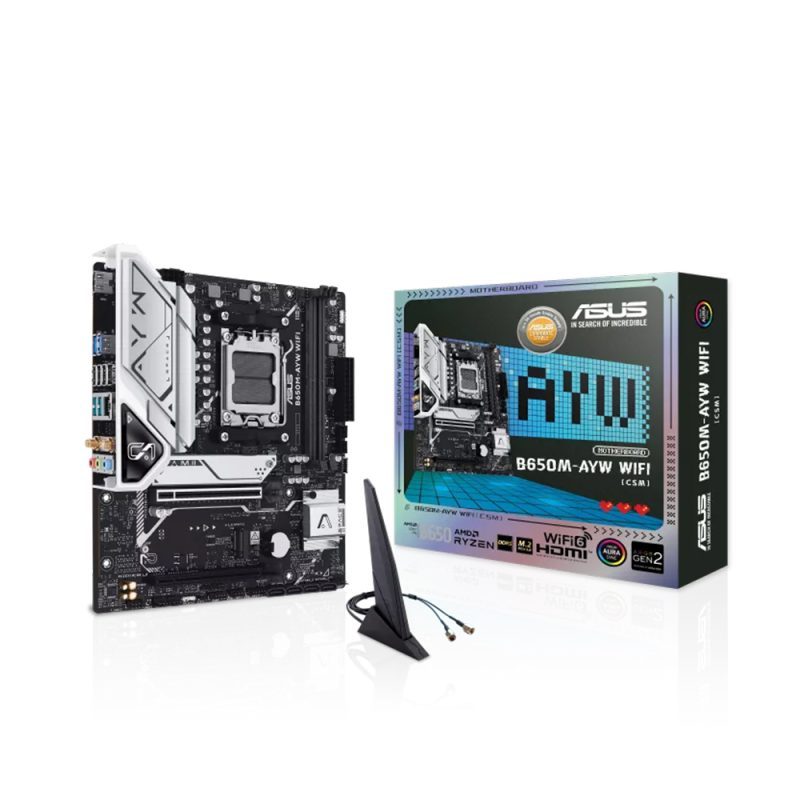

Mainboard ASUS B650M AYW WIFI CSM DDR5

Tình trạng: Còn hàng
Cơ sở còn hàng: Hà Nội

~~3,990,000.đ~~ 3,190,000.đ

Socket: AMD Socket AM5 AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Kích thước: micro-ATX

Khe cắm RAM: 2 khe (Tối đa 96GB)

Khe cắm mở rộng: 1 x PCIe 4.0 x16 slot (supports x16 mode), 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), 1 x PCIe 4.0 x16 slot (supports x4 mode)

Khe cắm ổ cứng: 2 x M.2 slots and 4 x SATA 6Gb/s ports

Bảo hành: 36 Tháng

TƯ VẤN TRỰC TIẾP:

Facebook(8h00 - 21h00)

Zalo(8h00 - 21h00)

TikTok(8h00 - 21h00)

0339.555.388(8h00 - 21h00)

Số lượng

Giao hàng
Giao hàng đúng hẹn, an toàn
Sản phẩm
Cam kết chính hãng 100%
Phát hiện hàng giả đền 200%
Đổi trả
Đổi trả hàng lỗi - sai mã
Hỗ trợ
Hotline: 0339 555 388
Thứ 2 - 7: 08:00 - 20:00
Chủ nhật: 09:00 - 17:00

Chia sẻ

Sản phẩm	Bo mạch chủ
Tên Hãng	Asus
Model	B650M-AYW WIFI-CSM
CPU hỗ trợ	AMD
Chipset	AMD B650
RAM hỗ trợ	2 x DIMM slots, max. 96GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Khe cắm mở rộng	AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B650 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode)
Ổ cứng hỗ trợ	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) AMD B650 Chipset** 4 x SATA 6Gb/s ports
Cổng kết nối (Internal)	Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C^® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x 10-1 pin System Panel header
Cổng kết nối (Back Panel)	2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
LAN / Wireless	1 x Realtek 2.5Gb Ethernet
Kích cỡ	micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )

Sản phẩm	Bo mạch chủ
Tên Hãng	Asus
Model	B650M-AYW WIFI-CSM
CPU hỗ trợ	AMD
Chipset	AMD B650
RAM hỗ trợ	2 x DIMM slots, max. 96GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Khe cắm mở rộng	AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B650 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode)
Ổ cứng hỗ trợ	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) AMD B650 Chipset** 4 x SATA 6Gb/s ports
Cổng kết nối (Internal)	Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C^® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x 10-1 pin System Panel header
Cổng kết nối (Back Panel)	2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
LAN / Wireless	1 x Realtek 2.5Gb Ethernet
Kích cỡ	micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
